Min mounting dimensions
--------------------------------------7000*3800*3000(mm)
Max.washable car size--------5300x2200x2000(mm)
Length of the rail----------------6000mm
Washing time--------------------5 min/car
Quick wash----------------------1 min/car
Water consumption------------220 L/car
Shampoo consumption-------50-100 ML/car
Wax consumption--------------20-40 ML/car
Air blower drying--4sets/12Kw (optinal 2sets/1 1kw)
Power supply------------------2201380/415V 50/60HZ
2 units/ 20GP 6 units/ 40HQ
Specificatins:
Min mounting dimensions --------------------------------------7000*3800*3000(mm)
Max.washable car size------------------------------------------5300x2200x2000(mm)
Length of the rail--------------------------------------------------6000mm
Washing time------------------------------------------------------5 min/car
Quick wash--------------------------------------------------------1 min/car
Water consumption----------------------------------------------220 L/car
Shampoo consumption-----------------------------------------50-100 ML/car
Wax consumption-----------------------------------------------20-40 ML/car
Air blower drying--------------------------------------------4sets/12Kw (optinal 2sets/1 1kw)
Power supply------------------------------------------------------2201380/415V 50/60HZ
2 units/ 20GP 6 units/ 40HQ
Features:

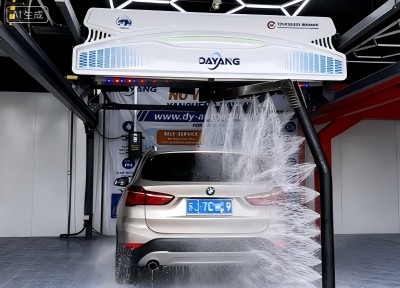

1. Smart 360 rotate arm made by 304 stainless,17 water nozzles made by 316L stainless steel. 2.Complete 360°rotating within 50 seconds,up to 100bar high pressure water can removethe dirt easily.

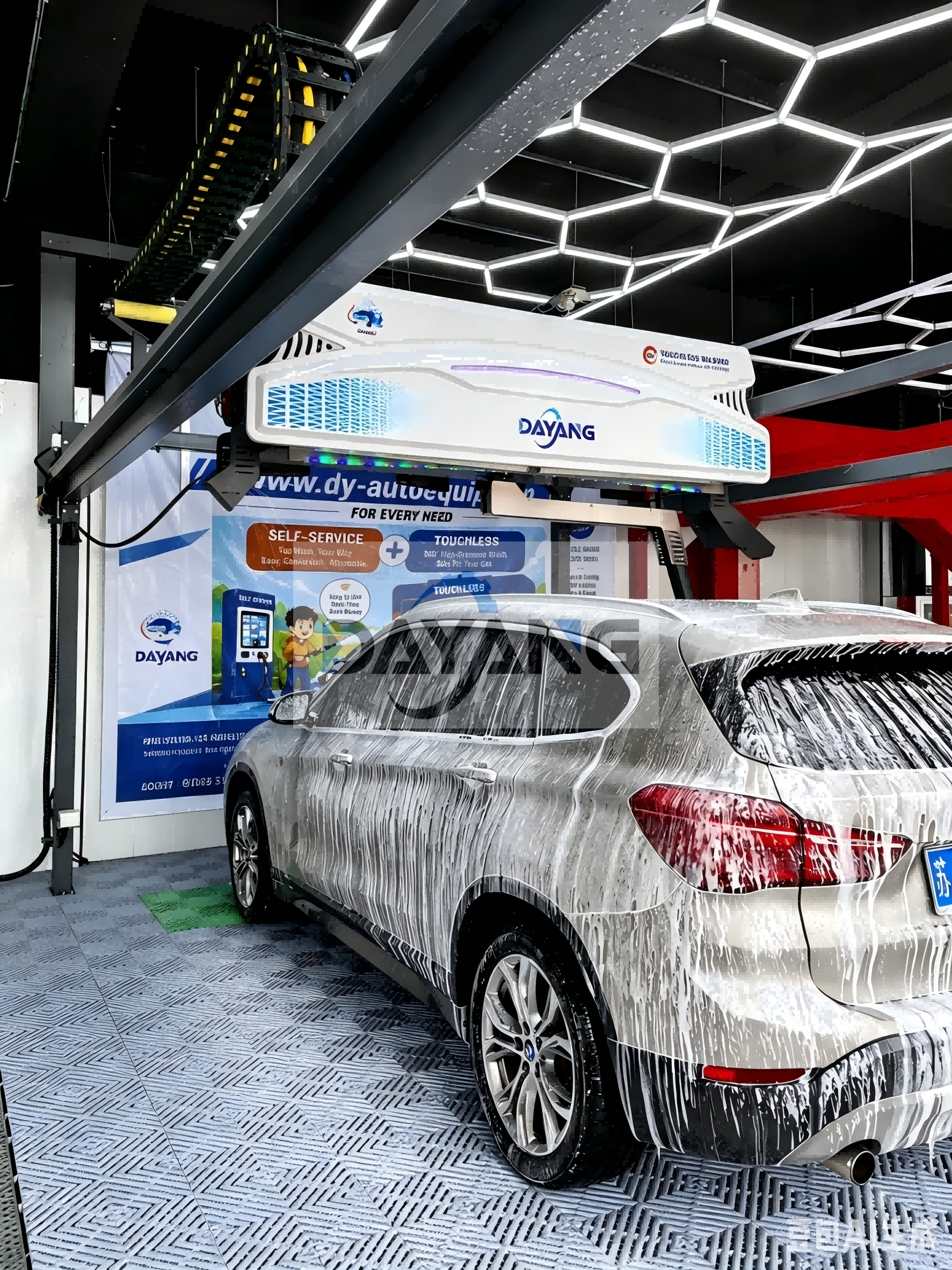

3.Spray shampoo and soft wax, forming amulti-layered protective film,with superiorprotection of car paint.4.4sets 12kw air dryers can fast drying thevehicle up to 90%. 2 sets 11kw of side airdryers(optinal).
5. Hot-dip galvanized mounting frames, keeplong service life.
6. Digital Collision Avoidance System, keepsafe.
